VOLLEYBALL COURT
🏐 Volleyball Court Construction Guide (FIVB Standards)
(Standards referenced from Fédération Internationale de Volleyball – FIVB)
1️⃣ Initial Planning
Before starting construction, decide:
-
Type of Court – Outdoor hard court, synthetic turf, sand/beach court, or indoor wooden flooring
-
Usage Level – School / Recreational / Club / Professional tournaments
-
Space & Budget – Surface type significantly affects cost
-
Orientation – North–South orientation minimizes sun glare

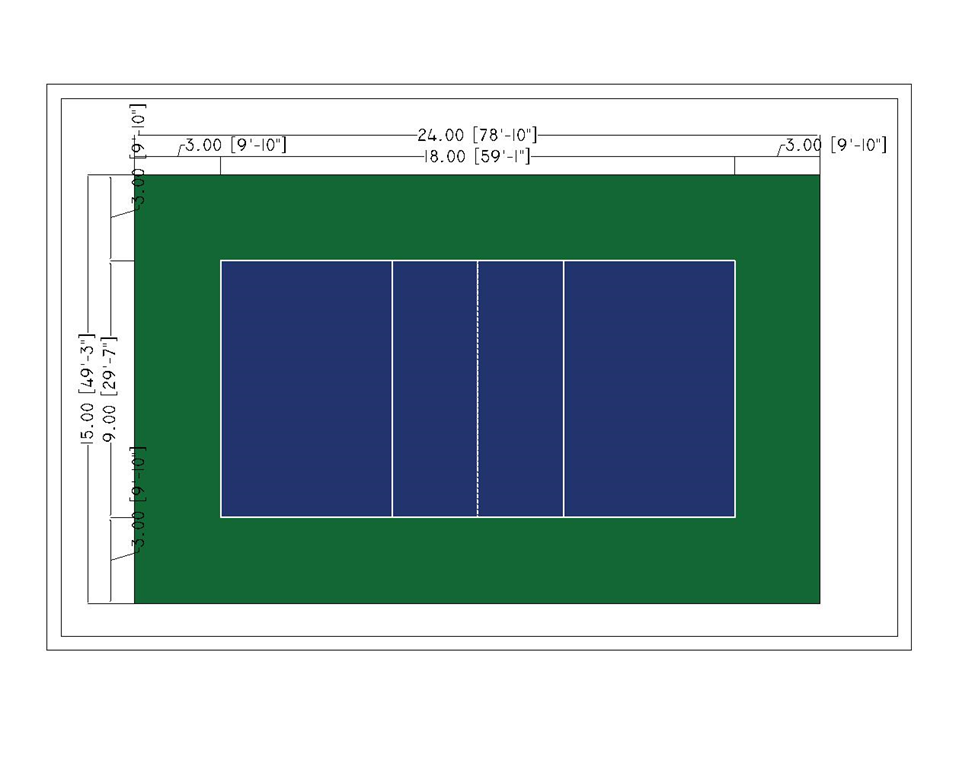

2️⃣ Standard Dimensions (FIVB Guidelines)
| Feature | Dimensions |
|---|---|
| Court Size | 18 m × 9 m (59 ft × 29.5 ft) |
| Free Zone (Clear Space) | Minimum 3 m (5–6 m for tournaments) |
| Ceiling Height (Indoor) | ≥7 m (Ideal ≥12 m for professional play) |
| Net Height – Men | 2.43 m |
| Net Height – Women | 2.24 m |
| Pole Distance from Sideline | ~1 m outside boundary |
3️⃣ Construction Steps
A. Site Preparation
-
Clear and level the land
-
Provide ~1% slope for outdoor drainage
-
Proper soil compaction to prevent sinking
B. Base Construction
🔹 Hard Court
-
150–200 mm compacted stone layer
-
Asphalt or concrete slab on top
-
Smooth finish for surface coating
🔹 Beach / Sand Court
-
Excavate 40–50 cm depth
-
Install gravel drainage layer
-
Fill with 30–40 cm clean, fine, rounded sand
(Avoid river sand to prevent compaction)
4️⃣ Surface Options Comparison
| Surface Type | Pros | Cons | Lifespan |
|---|---|---|---|
| Synthetic Acrylic (Outdoor) | Low maintenance, durable, good grip | Hard on knees | 5–8 years |
| Synthetic Turf | Softer on joints, all-weather | Requires brushing & infill maintenance | 5–7 years |
| Beach / Sand | Safe for falls, excellent training | Needs frequent raking | Continuous upkeep |
| Indoor Wooden (Maple / Synthetic Wood) | Tournament standard, cushioned | Higher initial cost | 10–15 years (with polishing) |
D. Net Posts & Net System
-
Heavy-duty galvanized or powder-coated steel poles
-
Adjustable net heights (men, women, junior levels)
-
Guy wires for outdoor wind stability
E. Fencing & Lighting
Fencing
-
10–12 ft high chain-link mesh around perimeter
Lighting Standards
| Usage | Lux Level |
|---|---|
| Recreational | ~300 lux |
| Professional | 500+ lux |
💡 Estimated Lighting Cost (India): ₹3–7 lakh depending on lux requirement and area.
F. Court Markings
-
UV-stable paint or prefabricated synthetic lines
-
Sand courts: Strap lines anchored securely
5️⃣ Project Timeline
| Stage | Duration |
|---|---|
| Site Preparation | 1–2 weeks |
| Base & Surface Installation | 2–3 weeks |
| Net, Fencing & Lighting Setup | 1–2 weeks |
| Total Duration | ~4–6 weeks |
6️⃣ Maintenance Guidelines
-
Hard / Synthetic Court: Regular sweeping, recoating every 5–8 years
-
Sand Court: Rake frequently, remove debris, replace sand every 2–3 years
-
Indoor Wooden Court: Daily dust mopping, polishing every 1–2 years
7️⃣ Accessories
-
Referee stand
-
Team benches
-
Manual or digital scoreboard
-
Boundary markers
-
Ball storage racks
