RUNNING TRACK
🏃 Athletics Track Construction Guide (WA Standards)
(WA = World Athletics)
1️⃣ Types of Running Tracks
| Type | Best For | Lifespan |
|---|---|---|
| Basic Practice Track (Non-Standard) | Schools, communities | 5–7 years |
| Standard 400m Track (8 Lanes) | Colleges, clubs, competitions | 8–10 years |
| Professional WA-Certified Track | National / International events | 10–12 years |

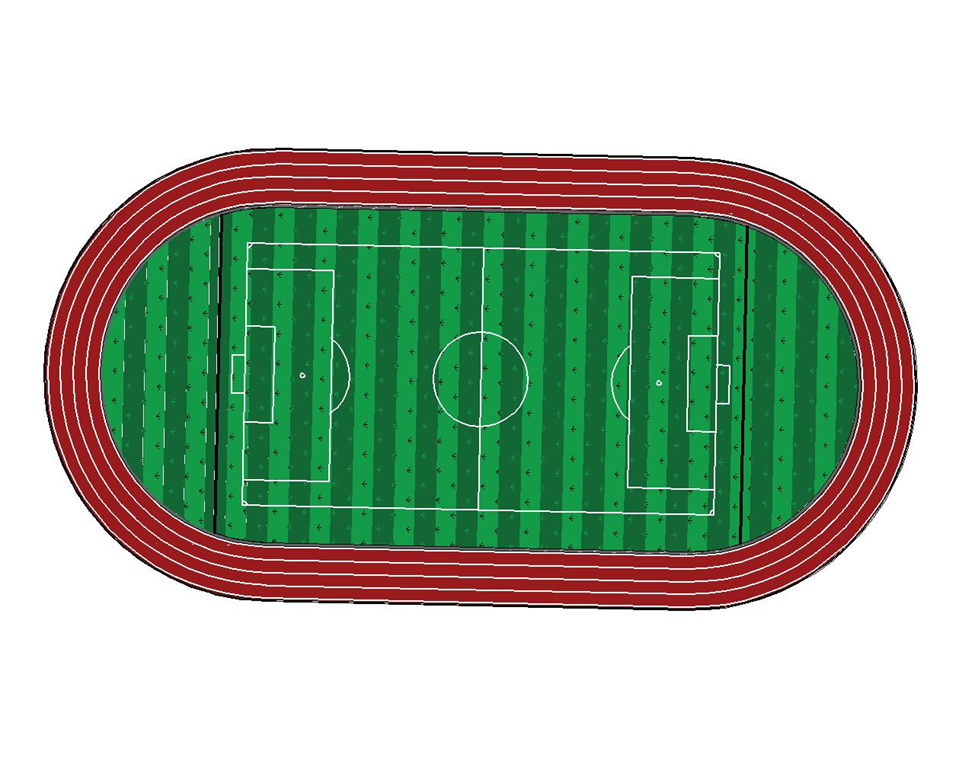

2️⃣ Standard Dimensions (WA Guidelines)
| Feature | Dimension |
|---|---|
| Track Length | 400 m (measured in Lane 1) |
| Number of Lanes | 6–8 lanes |
| Lane Width | 1.22 m per lane |
| Straight Section Length | 84.39 m |
| Radius of Curve (Lane 1) | 36.5 m |
| Inner Safety Border | 50 mm raised curb |
✅ For schools or space-restricted sites, 200 m or 300 m oval tracks can be constructed.
3️⃣ Construction Process
A. Planning & Design
-
Site survey to confirm dimensions
-
Prefer North–South orientation (reduces sun glare)
-
Plan drainage, spectator seating, and field event areas
B. Site Preparation
-
Clear vegetation
-
Level and compact soil
-
Provide ~1% slope for drainage
C. Base Construction
-
Sub-base: 150–200 mm compacted stone aggregate
-
Base Layer: Asphalt or RCC concrete
-
Surface tolerance: ±3 mm for smoothness
D. Surface Options
| Surface Type | Features | Lifespan |
|---|---|---|
| Polyurethane Sandwich System | WA standard, durable, widely used | 8–10 years |
| Full PU System | Seamless, high performance | 10–12 years |
| Acrylic Spray Coat | Budget-friendly, school level | 5–7 years |
E. Markings & Lanes
-
UV-stable polyurethane paint
-
Lane numbers
-
Start & finish lines
-
Relay exchange zones
-
Marked as per WA regulations
F. Drainage
-
Perimeter drainage channels
-
Connected to stormwater outlets
-
1% cross slope prevents water stagnation
G. Lighting (Optional)
| Usage | Lux Level |
|---|---|
| Training | 200–300 lux |
| Competition | 500–800 lux |
H. Field Event Accessories
-
Steeplechase water pit
-
Long jump & triple jump pits
-
Pole vault pit
-
High jump area
-
Track benches & hydration stations
4️⃣ Project Timeline
| Stage | Duration |
|---|---|
| Survey & Design | 2–4 weeks |
| Base Work | 4–6 weeks |
| Asphalt/Concrete Layer | 2–3 weeks |
| Synthetic Surfacing | 3–5 weeks |
| Markings & Finishing | 1–2 weeks |
| Total Time | ~3–4 months |
5️⃣ Maintenance Guidelines
| Surface | Maintenance Tips |
|---|---|
| Synthetic PU | Weekly debris cleaning, avoid damage from improper spikes, repaint lanes every 3–5 years |
| Acrylic | Recoat every 5 years, regular cleaning |
| Drainage System | Clear drains periodically |
6️⃣ Space Requirement
| Track Type | Area Needed |
|---|---|
| 200m Track | ~4,000–5,000 m² |
| 400m (6 Lanes) | ~12,000 m² |
| 400m (8 Lanes) | ~15,000 m² |
